YSF 420C-2600 Chain Feeder 2 Colors Prinitng Machine

Technology introductions

Function configuration and technical parameters

Prinitng Machine



One, Chain feeder

1. the paper feed table

1) semi-automatic chain feeding, side block position, after the paper table is convenient for storing and taking paper sheets (semi-automatic paper feeder can be added, continuous paper feeding reduces labor, and efficiency increases economic efficiency)

2) paper feed counter, showing the production quantity.



Two, The printing department (1 group, wallboard thickness 40 mm)



1. Printing roller

1) With 472mm diameter (including diameter with 480mm version).

2) Steel plate material, surface grinding, hard chromium plating, balance correction, smooth operation.

3) The printing roller axial clearance manual adjustment, adjustment range + 5mm.

4) the printing roller to 360 degrees of digital phase adjustment of the computer electric motor, can be preset digital automatic adjustment (operation, stop can be adjusted).

5) plate rod and the transmission gear with free bond collar, convenient dis-assembly, maintain long-term printing color accuracy.



2. Pressure roller

1) The outside diameter is 156mm.

2) Steel pipe surface grinding, hard chromium plating. Balance correction, smooth operation.

3) The printing roller clearance dial manual adjustment, adjustment range 0-11mm.



3. The anilox roller (roller mesh can be based on user requirements using 200-250 line / inch)

1) the outside diameter is phi 176mm.

2) the surface of the steel pipe using advanced hard chromium plating process, hard, smooth wear.

3) Dot consistent, ink uniform.

4) Extend the service life of printing plate and rubber roller.

5) Anilox roller clearance dial manual adjustment.



4. Rubber roller

1) The outside diameter is phi 180mm.

2) The surface of steel pipe coated with wear-resistant rubber.

3) The rubber roller high special grinding, inking effect is good.



5. Upper/lower dancing paper roller

1) Upper roller: 86mm diameter seamless steel tube, with four wheel (diameter 136mm).

2) Lower roller: 136mm diameter seamless steel pipe, surface grinding, hard chromium plating.

3) The interval of the rollers dial manual adjustment, adjustment range 0-11mm.



6. Ink cycle

1) Pneumatic diaphragm pump for ink stability, simple operation and maintenance.

2) ink filter screen, filter impurities.



7. Printing fixture

1) When the unit is separated, the pneumatic brake mechanism to limit the transmission shaft rotation, to maintain the original gear position fixed point, can achieve a smooth fit to maintain the original printing position.

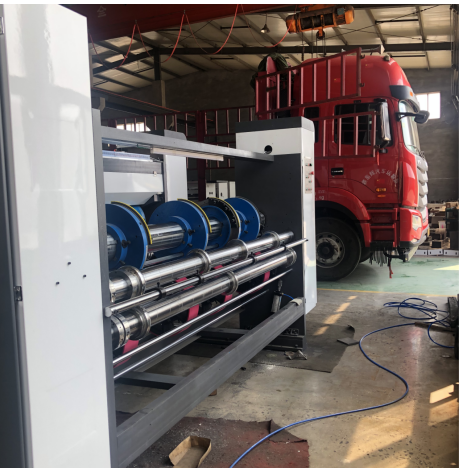

Slotting unit (one group, the thickness of wallboard 40 mm)



1. Creasing wheels

1) Adopt seamless steel pipe 110mm, after the twice grinding processing, the surface hard chromium plating, moving smoothly.

2) Creasing wheels diameter 180mm, the interval dial manual adjustment, adjustment range of 0-11mm.

2. Slotting mechanism

1) Adopt seamless steel pipe, after twice grinding processing, the surface hard chromium plating, moving smoothly.

2) slotting knife width 7.0mm.

3) The alloy steel material through heat treatment grinding gear type slotting cutter, hardness and toughness are good.

4) The alloy steel material through the heat treatment of the double edge trimming knife, knife edge sharp, high precision.

5) Slotting knife (carton height) synchronous adjustment, reduce adjustment time improve work efficiency.

6) The slotted knife shaft and the transmission gear connects by free-key collar, convenient dis-assembly.

3. Slotted phase adjustment mechanism

1) Planetary gear structure.

2) Slotted phase 360 degrees digital phase adjustment of computer electric motor, can be preset automatically adjust the number. (running and stopping can be adjusted).



Four. Transmission gear

1. Main drive gear

1) 45# alloy steel material, after quenching and tempering, hobbing, high frequency quenching, hardness HRC52-55, long life, wear small, can guarantee the accuracy of printing color.

2) All the transmission shaft and gear using no key coupling, can make the gear and shaft connection without clearance, coaxial high, no loose,Printing overprint error.

2. Lubrication part

1, gear oil pump automatic spray circulation oil system, reduce gear wear, reduce maintenance costs.



Five. transmission part

The machine bearings are used ha, Wa, Luo bearings.



Six. Electrical parts

1) The machine adopts photoelectric counting, with warning lights, warning bell.

2) Contactor, button, indicator light adopt CHNT and Schneider.

3) The main machine adopts frequency conversion motor.

4) The ink distribution motor uses Taiwan gear reducer motor.



Seven. Technical parameters

Mechanical speed (sheet / min)	70
Economy speed (sheet / min)	50-60
Max feed size (mm)	2600*1300
Minimum paper size (mm)	330 x 270
Max Prinintg Siza (mm)	2400*1250

Note: Air pump from Buyer.



Explanation

● While customer signing contract, customer need choose anilox lines No.

● Machinery has twelve months guarantee,without contain wearing parts, if need to install and training,we will send our technical person,but all of charge will be paid by buyer,  (such as: visa fee, room and board, workers salary $100 per person per day)



Price and payment

YSF480c-2600 CHAIN FEEDER 2 COLORS PRINITNG Slotter MACHINE WITH AUTO FEEDER
CHAIN FEEDER TABLE	1 UNIT
PRINITING	2 UNIT
SLOTTING	1 UNIT
PRICE: USD17900 /  EXW   PAYMENT: 30% TT,70% BALANCE BEFORE LOADING DELIVERY TIME:35-50 DAYS OFFER EXPIRY DATE: 1 MONTH

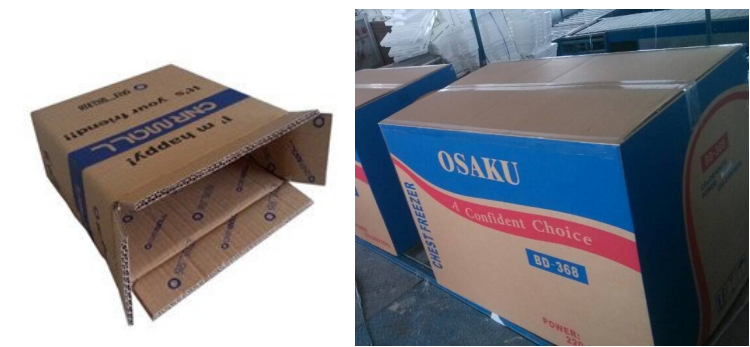

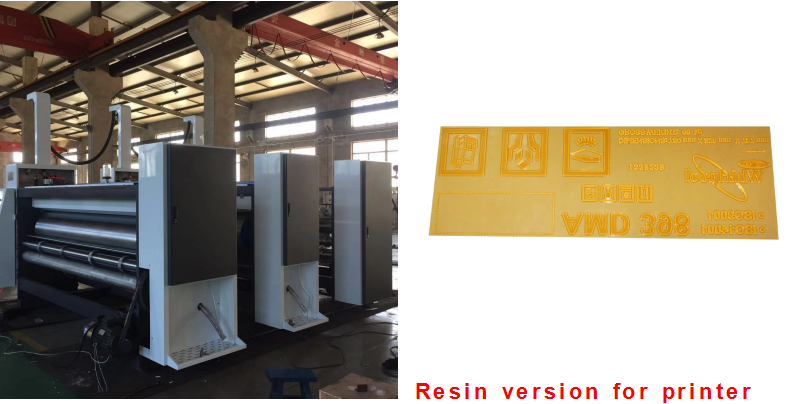

Nine: Samples
