ZHBMY Semi Automatic Corrugated Carton Box Manual Paper Punch Die Cutting and Creasing Machine

COMPANY INTRODUCTION

Cangzhou ZHENHUA Packing Machinery Manufacturing Co., Ltd.(Origin Liantong Machinery Co., Ltd. )is headquartered in No 70, Bajie Cun, Dongguang County, Cangzhou City, covering an area of over 20000 square meters and construction area of over40000 square meters.

Founded in 1999, ZHENHUA now owns modern production facilities and over 50 employees with annual production capacity of 100 sets.

At ZHENHUA, we are proud that every machine has been under manufacturing in strict accordance with ISO9001 Quality Management System and CE Standards. There are over 100 machines running in 10 countries, such as Mexico, Saudi Arabia, Poland, Russia, South Africa, Thailand and etc.

Our current product range covers:

High efficiency

1. Automatic die cutting machine with four side stripping ZHMY1300/1500/1650/2100/2500
2. Automatic lead edge feeding die cutting machine with four side stripping ZHMY1300/1500/1650/2100/2500
3. Automate-manual die cutting machine with four side stripping (TOP FEEDING) ZHMY1300/1500/1650/2100/2500

Economical, high cost performance

1. Automatic die cutting machine with three side stripping ZHMY1300/1500/1650/2100/2500
2. Automatic lead edge feeding die cutting machine with three side stripping ZHMY1300/1500/1650/2100/2500
3. Automate-manual die cutting machine with three side stripping (TOP FEEDING) ZHMY1300/1500/1650/2100/2500
4. Automate-manual die cutting machine (TOP FEEDING) ZHMY1080
5. Semi-automatic die cutting machine with feeding table ZHMY1300/1500/1650/2100/2500
6. Semiautomatic die cutting machine ZHMY1300/1500/1650/2100/2500

Since started the partnership with world leading packaging companies of European, Asian,Mideast, North & South America companies, ZHENHUA will continually satisfy our customers by offering high quality machines and first-class service.

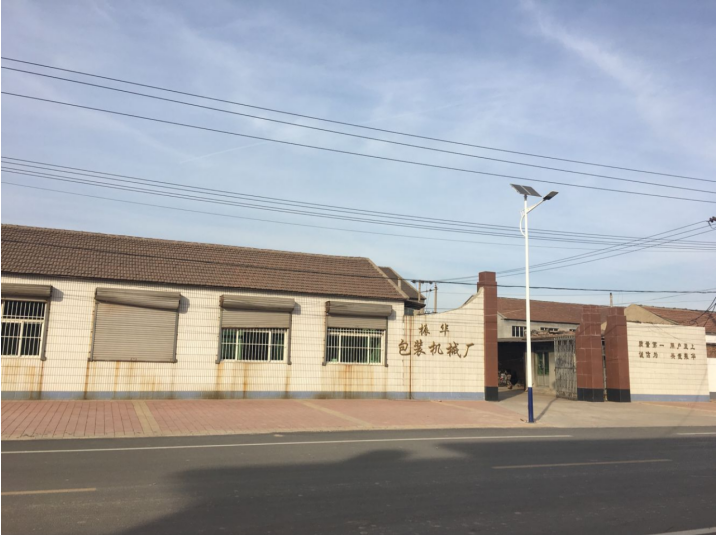

Factory

Workshop

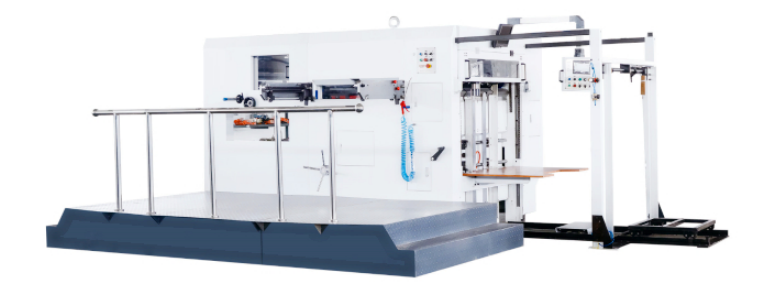

Semi Automatic Die Cutting Machine

All the parameters of this document and the right of explanation of the photo shall be owned by the company, subject to change without prior notice

Specification

Semi-Automatic die-cutting machine is the key device for the production of cartons, paper boxes and high standard paper products, etc. It is especially applicable to the automatic die-cutting of complicated paper boxes and cigarette cases to rationalize the production of paper boxes. This machine is integrally assembled, transported and mounted, it can be put into operated in one day, and thus the cost is reduced. The precise assembly and high configuration make it better than Taiwan machines and competitive with Japan machines.

Advantages of die-cutting machine:

1、Paper Feeding Unit and Paper Conveying Unit

1) With the unique design of the pre-feeder, side regulation and pedal cylinder control, eliminating manual handing and adjustment cumbersome, time-saving, and improve efficiency.
2) To improve the working efficiency, paper feeding and collecting are realized by Taiwan Chenggang dual-speed reduction motor which provides a long service life and a high torsional force, and it saves time due to its high lowering speed.
3) Paper delivery part monitoring: there is a video interface showing the circumstance of the paper delivery part， which help the worker find the abnormal situation and take steps.
4) Paper is positioned by a pushing unit and a pulling unit which can be shifted conveniently for different specifications of paper.
5) A new stability design of hydraulic lifting platform can improve efficiency and safety.

2、Die-cutting Unit

1) The cast wall plate is rejected because of its low pulling force but high deformation, and steel wall plate is applied like Japan machines. The pulling force is enlarged, i.e. the pressing force is enlarged, and it becomes firm and endurable without any deformation.
2) The oil route is forcibly lubricated by an oil pump as made in Taiwan to reduce wearing, an oil cooler is added to cool the lubricating oil, and the main chain is lubricated timely to improve the operation efficiency.
3) The novel transmission mechanism provides high speed die-cutting, and the highly precise swing link platform improves the padding speed (almost without padding), as it is known the pressure can be hardly balanced in most of other common machines.
4) The pneumatic plate locking unit can fix the upper frame more firmly and faster. In our die-cutting machine, the front, back, left and right are pneumatically locked simultaneously to realize a high correctness and a high speed. However, common machines are tightened by screws.
5) The paper holding rack chain is imported from Germany, which provides a long service life and a stable die-cutting precision.
6) The Taiwan intermittent mechanism is the main transmission part of the die-cutting machine, and it improves the die-cutting speed and precision and reduces the device noise, while the speed and precision cannot be realized by any domestic mechanism.
7) The torque limiter is equipped with overload protection. The primary and secondary units can be separated at any overload to ensure the machine can be operated safely. The Italia pneumatic brake and clutch with Japan SMC rotary joint comply with the European standard. They provide fast clutching, high and stable force, long service life and low noise.

3、Paper Collecting Unit

1) Paper can be collected automatically and orderly.
2) The efficiency is improved by an uninterrupted paper collecting grid plate, and when paper is stacked to the specified height, the paper collecting grid plate will be replaced by another plate for uninterrupted paper collecting.
3) By the pneumatic sampling, the die-cut paper can be conveniently inspected at any time.

4、Electrical Control Unit

1) The electrical control system is Japan Omron PLC computer automatic control for fully detecting and controlling, and the Japan TOSHIBA frequency converter with Taiwan main motor provides high power for paper feeding, paper conveying, die-cutting, and paper collecting.
2) The human-machine interface can display various working conditions, indicate fault positions and give solutions.
3) The machine is equipped with various safety protection units. A visible and audible alarm will be given at any fault, and the machine will be automatically shut down to protect personal and device safety.

Configuration Information

Installation and Training Charge

If the buyer need our factory to sent engineer go to install, the buyer will cover all expense of engineers visiting including visa application, round-trip tickets, local transportation, meals and hotel expenses. The buyer will pay engineer wage US$120 per day per person. It is better if the buyer need ask for one interpreter for our engineer.

Our service

At ZHENHUA, you can expect satisfactory customer service with long tradition. We are highly devoted to the most optimal solid and liquid separation solutions to meet your specific needs. We have the effective service system to ensure professional and flexible management of any affairs.

1. Pre-sales technical consultation

2. Model selection

3. Machine guidance

4. Operation & maintenance training

5. Maintenance service

6. Quick supply of spare parts

7. Customer satisfaction track

After-sale Service

ZHENHUA promises that all machines made by us come with services of repair and replacement.

Machine warranty is 12 months. We provide free repair services to any failures caused by us within warranty time. However wearing parts are not included.

1. Any quality failure problems happens within guarantee period, we will reply within 24 hours after receiving your request.

2. ZHENHUA will provide lifelong maintenance service to all parts and regular maintenance to flat bed die cutters.

3. ZHENHUA will handle any quality failure occurred within warranty time.

4. ZHENHUA will provide lifelong technical support started from using of the machine.

5. ZHENHUA will supply normal parts within warranty period to ensure better user experience. Parts supply will be charged after warranty period.
